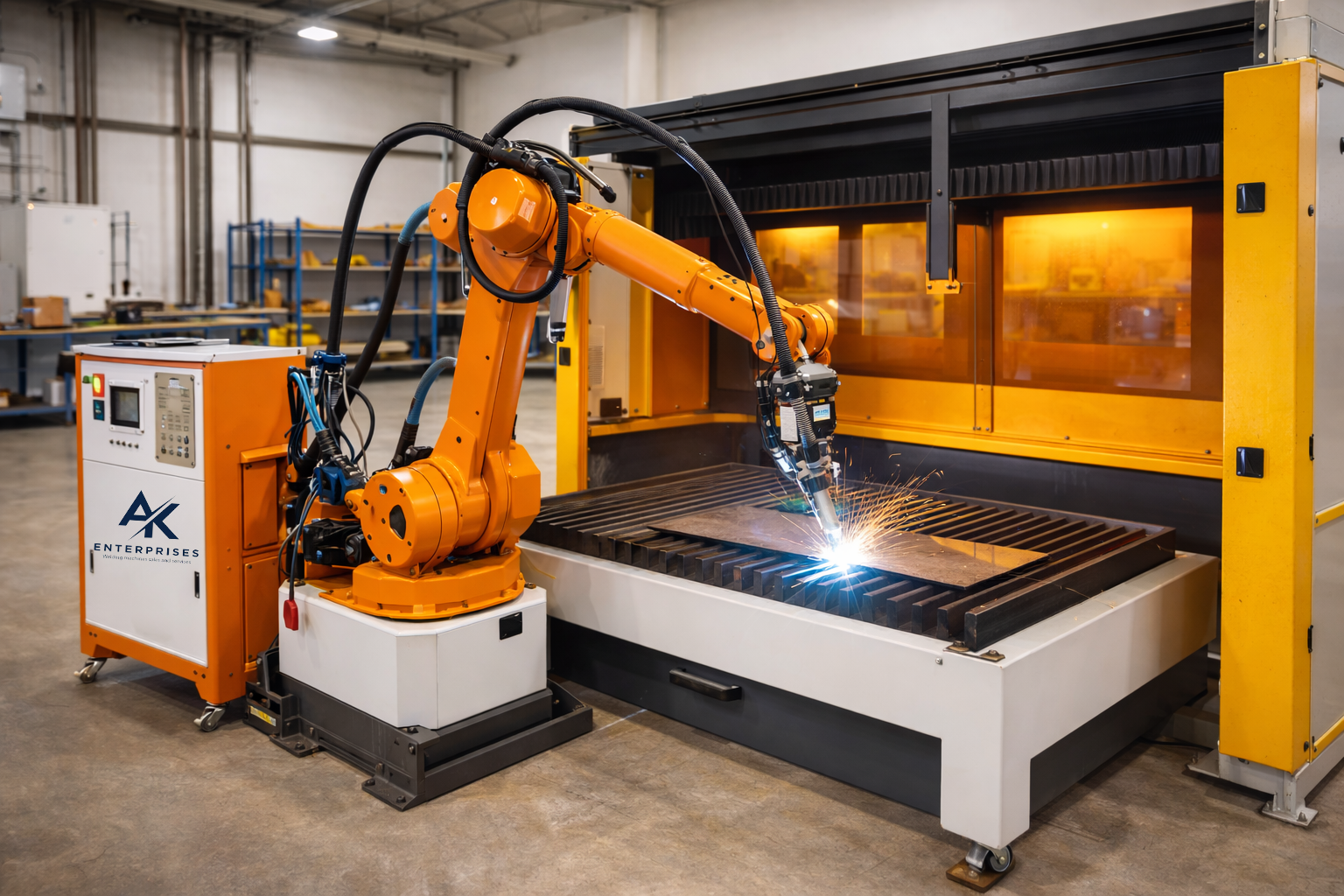

The Robot Laser Cutting and Welding Machine delivers high-speed, high-precision cutting and welding with advanced robotic automation, intelligent laser control systems, and stable power performance, ensuring superior joint strength, accurate cuts, reduced production time, and consistent results across automotive, fabrication, and industrial applications. AK Enterprises Pune brings you this advanced robotic laser solution tailored for Indian industries.
As an industry-leading manufacturer, AK Enterprises Pune provides cutting-edge solutions in welding automation and advanced metal processing systems. Their Robot Laser Cutting and Welding Machine integrates advanced 6-axis robotic movement with powerful fiber laser technology, enabling precise 3D cutting and high-quality welding of complex and detailed components.
Designed for superior accuracy and productivity, this system ensures fast processing speeds, consistent performance, and exceptional precision, making it ideal for industries requiring automated, high-performance cutting and welding operations on intricate metal parts.
| Model | Robot Arm 3D Laser Cutting & Welding Machine |
| System Control | Fully Automatic with Robotic CNC |
| Usage/Application | Assembly, Automotive Parts, 3D Fabrication |
| Color | BLUE & ORANGE |
| Size / Radius of Crane | 1.45m / 1.65m / 1.85m / 2m (as per configuration) |
| Phase | 3 PHASE |
| No. Of Axes | 6-axis 3D robotic arm |
| Laser Power | 1kW, 2kW, 3kW, 4kW (IPG / Raycus / Max) |
| Repeatability | ±0.03 mm |
| Max. Reach | 2000 mm (depending on model) |
| Max. Payload | 10-20 kg (wrist dependent) |
| Brand | AK Enterprises |
*Custom configurations and reach options available upon request.
High-speed 6-axis robotic arm for complex 3D cutting and welding operations
Fiber laser source with high electro-optical efficiency and maintenance-free operation
Intelligent robotic controller with offline programming and simulation software
Seamless integration with CAD/CAM for automated path generation
Automatic focus adjustment and seam tracking for consistent weld quality
Cut and weld complex geometries, curved surfaces, and hard-to-reach areas
Dual functionality – switch between cutting and welding operations
Emergency stop, safety fencing, and light curtains for operator protection
Remote diagnostics and IoT ready for Industry 4.0
1 6-axis Robotic Arm with controller and teach pendant
1 Fiber laser source (1kW to 4kW as per order)
1 Laser cutting head with automatic focus
1 Laser welding head with seam tracking (interchangeable)
Chiller unit for laser cooling
Safety fencing with interlock system
Set of nozzles, protective lenses, and ceramic rings
Operation manual and maintenance toolkit
Offline programming software license
3D Robotic Laser Cutting – suitable for complex shapes, tubes, and formed parts
3D Robotic Laser Welding – deep penetration welding for automotive and industrial components
Materials: Mild Steel, Stainless Steel, Aluminum, Copper, Brass, Titanium
Continuous wave or pulsed mode for different applications
Automotive body-in-white and chassis components
Aerospace structural parts and engine components
Tube and pipe cutting and welding for furniture and frames
Medical devices and surgical instruments
HVAC ducting and sheet metal fabrication
Heavy equipment and agricultural machinery manufacturing
Prototyping and custom 3D part production
