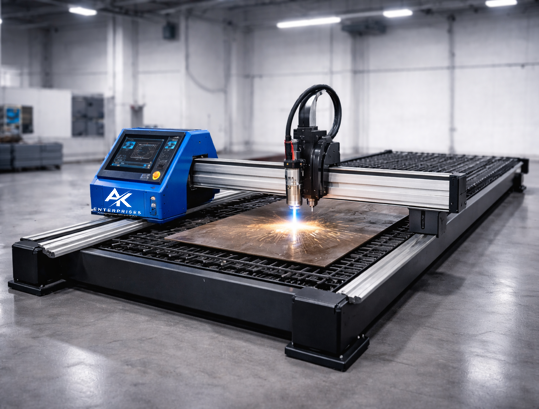

The Portable Gantry CNC Plasma Cutting Machine delivers high-accuracy metal profile cutting with advanced CNC automation, reliable plasma power sources, and precision control systems. Its portable gantry design ensures flexibility, smooth cutting performance, and consistent results, making it ideal for a wide range of industrial and on-site cutting applications. AK Enterprises Pune brings you this versatile and portable plasma cutting solution tailored for Indian industries.
Recognized for its innovation and quality, AK Enterprises Pune delivers advanced solutions in welding automation and precision metal cutting technology. The Portable Gantry CNC Plasma Cutting Machine is engineered for flexibility and high performance, featuring a sturdy gantry design with a lightweight structure for easy transportation across different work locations.
This machine ensures accurate and efficient cutting with stable motion control, producing smooth and precise results on a wide range of metals. Its quick installation process, reliable performance, and compact design make it an ideal choice for fabrication units, on-site industrial projects, and maintenance applications requiring fast and precise metal cutting.
| Model | Portable Gantry CNC Plasma Cutting Machine |
| Cutting Thickness | 20 mm (mild steel), up to 12 mm stainless steel |
| Automation Grade | Fully-automatic with CNC control |
| Voltage | 220 V / 415 V (as per model) |
| Material | Mild Steel, Stainless Steel, Aluminum, Copper, Brass |
| Phase | 3 Phase |
| Working Width | 1500 mm, 2000 mm, 2500 mm (customizable) |
| Rail Length | 6000 mm (extendable with additional rails) |
| Plasma Power Source | IGBT based, 40A to 120A (optional) |
| Cutting Speed | 0 – 6000 mm/min (adjustable) |
| Positioning Accuracy | ±0.5 mm per meter |
| Torch Height Control | Automatic THC with arc voltage sensing |
| Brand | AK Enterprises |
*Custom specifications and rail lengths available upon request.
Portable gantry design – easy to disassemble and transport between job sites
Lightweight yet rigid aluminum gantry for stable cutting performance
High-precision CNC controller with advanced shape nesting software
Automatic torch height control (THC) for consistent cut quality on uneven plates
Compatible with all major plasma power sources (Hypertherm, Thermal Dynamics, etc.)
Rail system can be extended for cutting longer plates up to 12 meters
User-friendly Windows-based CAD/CAM interface – import DXF/DWG directly
Emergency stop and collision protection sensors for safe operation
Low power consumption and minimal maintenance requirements
1 Portable Gantry with CNC controller and drive system
2 Rails with 6000 mm length (standard)
1 Industrial PC with pre-loaded cutting software
1 Plasma power source (as per order: 40A/60A/100A/120A)
1 Plasma torch with automatic height controller
Cable & hose package (primary cable, torch leads, grounding cable)
Set of nozzles, electrodes, and swirl rings (consumables kit)
Operation manual and maintenance toolkit
Portable trolley for controller and power source
Plasma cutting (PAC) – suitable for conductive materials: mild steel, stainless steel, aluminum, brass, copper
Option for marking / scoring with reduced current
Oxy-fuel cutting option available for thicker materials (up to 150 mm)
On-site construction and structural steel fabrication
Shipbuilding and offshore platform construction
Pipeline and tank manufacturing
Bridge building and heavy infrastructure projects
Maintenance and repair workshops with mobile cutting needs
Demolition and scrap yard cutting operations
Field service and job site metal fabrication
